Torque Tube Displacer Level Transmitter. Fst4000 is a torque tube displacement type level indicating transmitter with intelligent data processing function. The vessel can be several hundred psi as inn an oil refinery.
Comparing displacer transmitter technologies for liquid from www.piprocessinstrumentation.com
Adding to all features of existing torque tube type level transmitters, highly advanced signal processing unit offers high function and high Torque tube instrumentation has been a common solution for level control applications. This angle displacement transfers through torque rod and coupling, and detected by the angle displacement sensor.
*)Dd_Rev Parameter Gives The Oldest Revision Number (Numerically Smallest) Of Dd, Which Describes The Devices Of This Device Revision.
A change in liquid level varies the net weight of the displacer (2), increasing or decreasing the load on the torque tube (4) by an amount directly proportional to the change in liquid level. If the level rises above the top of the displacer, the displacer cannot measure the level. Fst4000 is a torque tube displacement type level indicating transmitter with intelligent data processing function.
The Vessel Can Be Several Hundred Psi As Inn An Oil Refinery.

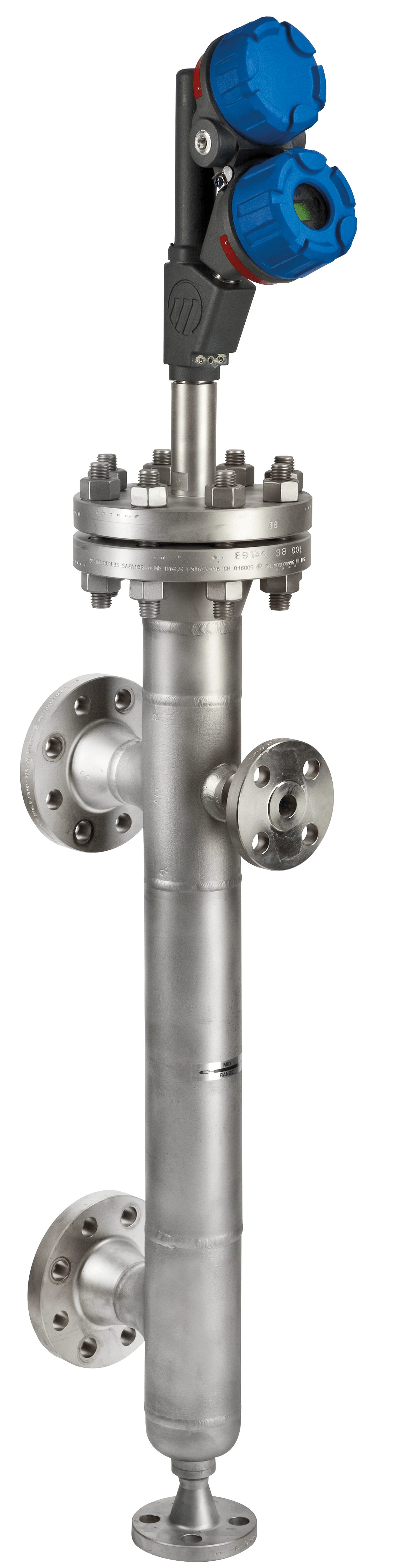

This instrument may also be fitted in a separate measuring chamber, fitted to the main vessel. By comparison, torque tubes must be factory configured to orient the display to the left or right of the chamber. These include improved accuracy, structural integrity, footprint, and maintenance capability.
> What Is The Need For Torque Tube In Displacer Type Level Transmitter?
The torque tube does two things: Displacer level transmitter technology offers advantages over torque tubes. The weight of the displacer acting on the torque arm, will cause an angular displacement of the free end of the flexible torque tube and this movement will be used to measure the level.
Torque Tube Functions As To Enclose The Process Liquid And As Torsion Spring Function, And Converts Torque Into Angle Displacement.
Displacement transmitters can have higher maintenance needs. Unfortunately, torque tubes can be rather. Displacer transmitters preferable to a torque tube based instrument.
Measurement Accuracy The Main Technology Advantage Is A More Accurate Level Output Given By A Range Spring/Lvdt Displacer Transmitter.
Unfortunately, torque tubes can be rather difficult. Then, it will be converted into liquid level signal by a/d converter, and sent it to cpu. Series tb300 torque tube liquid level instruments utilize the buoyancy exerted on a displacer when immersed in a liquid.
