Torque Pivot Point . The pivot point is at o. And different torque magnitudes will produce different rotational behaviors. Solved Exploration 2 Torque For An Object Free To Rotate from www.chegg.com Conversely, the less force applied, the less the torque will be. A uniform log that’s a hundred feet long seems pretty unlikely in the wilderness!. Figure 10.31 torque is the turning or twisting effectiveness of a force, illustrated here for door rotation on its hinges (as viewed from overhead).
Equilibrium Of Torques. They are also important for the study of machines, since one must first establish equilibrium and then apply extra force or torque to produce the desired movement of the machine. Equilibrium of torques on meterstick purpose.

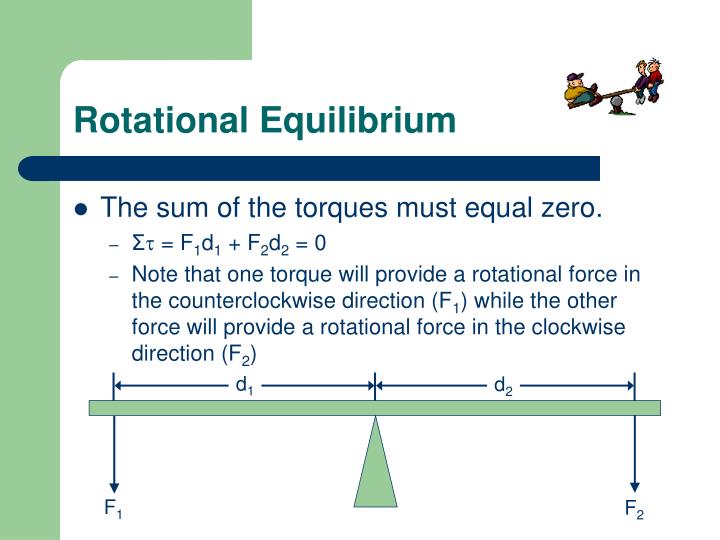

PPT Torque PowerPoint Presentation ID1760856 from www.slideserve.com
When substituting torque values into this equation, we can omit the torques giving zero contributions. Let two equal and opposite forces act on a rigid body as shown in fig. We usually only deal with motion of objects in two dimensions, in which case the conditions for static equilibrium are.
The Force Acting On The Body.
An object is in static equilibrium, if both the sum of the external forces exerted on the object and the sum of the external torques (about any axis) are zero.if the object is in static equilibrium the center of mass will have no acceleration and the object will have no angular acceleration. For each, there are cylinders of smaller radius r and larger radius r. The second equilibrium condition (equation for the torques) for the meter stick is τ 1 + τ 2 + τ + τ s + τ 3 = 0.
(2) And (3) Bicep Tension.
Torques and static equilibrium introduction the primary purpose of this lab is to introduce you to the quantity called the torque or, as engineers call it, the moment of a force and show how this quantity behaves in a system in static equilibrium.torque is a measure of the ability of an applied force to cause an object to turn and is the rotational analogue to force. A smaller weight m is suspended from a string wrapped around the larger radius r, and a larger weight m suspended from the smaller radius r. 19 20 20 21 21 22 types of equilibrium neutral:
When This Condition Is Satisfied We Say That The Object Is In Translational Equilibrium.
The torques due to the bicep tension and the ball weight are trying to rotate the elbow in opposite directions, so if the forearm is in static equilibrium the two torques are equal. To demonstrate equilibrium of torques. This demonstration illustrates the following concepts:
(It Really Only Tells Us That Acm Is Zero, But Of Course That Includes The Case Where The Object Is Motionless.) • The Sum Of The External Torques On The Rigid Object Must Equal Zero.
In order for a rigid body to stay in equilibrium, the net force and the net torque on the object must both be zero. In this case, choosing the hinge as the point to take torques around eliminated both components of the support force at the hinge. In such a case, the angular velocity of the body remains constant.
A Torque Is The Result Of Force Acting At A Distance From An Axis Of Rotation.
The second law of the equilibrium of forces states that the vector sum of the torques, acting on a rigid unaccelerated object, is zero. (1) balance of torques, (2) friction and the normal force, (3) finding the center of gravity. Rotational equilibrium is when the net torque acting on a system is equal to zero.
